Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables

Name: Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-10101Z1, YW-10101Z1
Price: 3.20 USD
Availability: InStock

Numero di modello:	YW-10101Z1, YW-10101Z1
MOQ:	10
prezzo:	$3.20-4

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Guangdong, Cina

Dimensioni:

10x10x1 mm

Interfaccia di comunicazione:

I2C, USB, SPI, UART

Accuratezza di inseguimento:

<10m>

Monitorare la sensibilità:

-162dbm

Temperatura di lavoro:

-40 ° C a +85 ° C.

Frequenza del ricevitore:

GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BEIDOU B1 Galileo E1B/C²

Time-to-First-Fix:

Hot Start: 1s, Cold Start: 30s, Warm Start: 28s

Tasso di baud:

9.600 bps (impostazione predefinita) o 115200 bps

Tasso di navigazione massimo:

da 1 Hz a 10 Hz

Accuratezza del tempo del tempo:

RMS 25 ns

Precisione della velocità:

0,1 m/s

Tensione operativa:

3.3V ~ 5V/3.3V ~ 12V

Consumo energetico:

Operativo: da 25 mA a 50 mA, standby: da 1Ma a 5Ma

Tipo di antenna:

Antenna ceramica patch interna

Satelliti supportati:

GPS, Glonass, Galileo, Beidou, SBAS, QZSS

Evidenziare:

IoT Devices GNSS GPS Module

Asset Pet Tracking GPS Module

Wearables GNSS Module

Descrizione del prodotto

Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking Wearables

YW-10101Z1 GPS Positioning Module Specifications

Parameter	Specification
Model No.	YW-10101Z1
Chipset	Goke, CKS, or appointed
Receiver Frequency	GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BeiDou B1 Galileo E1B/C² (or upon order)
Number of Channels	As per order
Locating Accuracy	Horizontal Accuracy: 2.5 to 5 meters
Time-To-First-Fix	Hot Start Time: 1s \| Cold Start Time: 30s \| Warm Start Time: 28s
Sensitivity	Tracking: -162 dBm \| Acquisition: -160 dBm \| Cold Start: -147dBm
Baud Rate	9,600 bps (Default) or 115200bps
Max Navigation Update Rate	1Hz to 10Hz
Accuracy of Time Pulse Signal	RMS 25 ns
Velocity accuracy	0.1 m/s
Data Output Format	NMEA 0183 standard sentences (GGA, GLL, GSA, GSV, RMC, VTG, ZDA, ANT, DHV, LPS, UTC, GST etc.)
Interface Type	UART, I2C, SPI, USB, etc.
Operating Voltage	3.3V ~ 5V/3.3V~12V
Power Consumption	Operating Current: 25mA to 50mA \| Standby Current: 1mA to 5mA
Operating Temperature Range	-40°C to 85°C
Antenna Type	Internal patch ceramic antenna
Supported Satellite Systems	GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
Firmware Upgrade	Supported or not supported
Package Type	SMD
Certifications	FCC, CE, RoHS, etc.
Packing way	Baseband Packaging/Tray Packaging

Dual-frequency vs. Single-frequency GPS Module Comparison

A dual-frequency GPS module receives signals on two different frequency bands (typically L1 and L5 for civilian use, or L1 and L2 for military/surveying applications), while a single-frequency module only uses L1.

Advantages of Dual-frequency GPS:

Higher Accuracy - Corrects ionospheric delays, reducing positioning errors to sub-meter or centimeter-level accuracy (vs. ~3-5m for single-frequency)
Better Signal Reliability - Less affected by multipath interference and urban canyon effects
Faster Convergence - Achieves stable position fix more quickly in challenging environments
Improved Performance in Tough Conditions - Works better under tree cover, near tall structures, or in weak signal areas

Feature	Single-frequency (L1)	Dual-frequency (L1+L5/L2)
Accuracy	~3-5 meters	<1 meter (up to cm-level with augmentation)
Ionospheric Correction	No	Yes
Multipath Resistance	Moderate	High
Cost	Lower	Higher

Applications

Single-frequency: Basic navigation, consumer devices (e.g., smartphones, budget trackers)
Dual-frequency: Precision agriculture, drone navigation, autonomous vehicles, surveying, and high-end IoT devices

Dual-frequency GPS modules provide superior accuracy and robustness, making them ideal for professional and high-precision use cases.

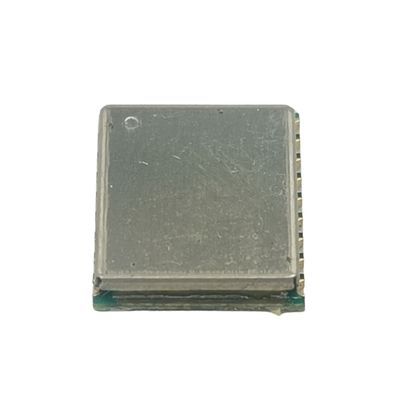

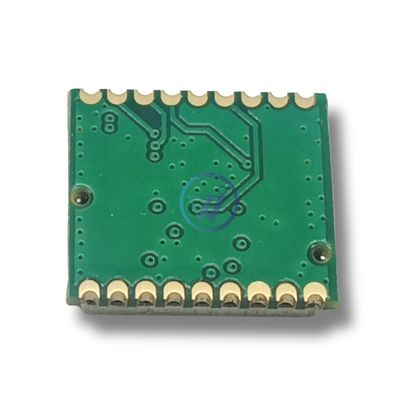

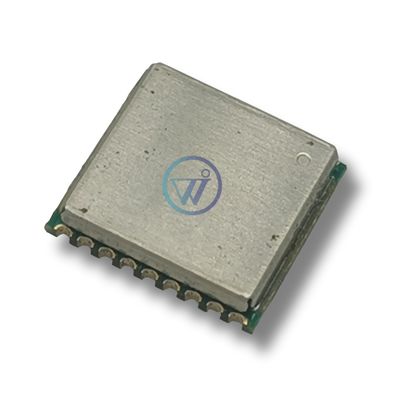

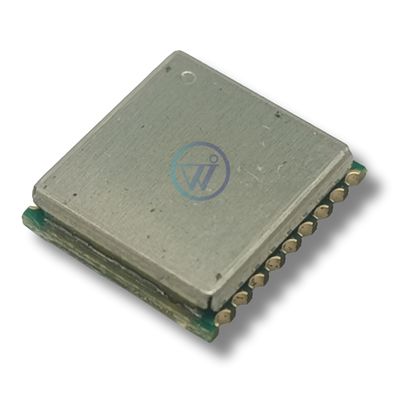

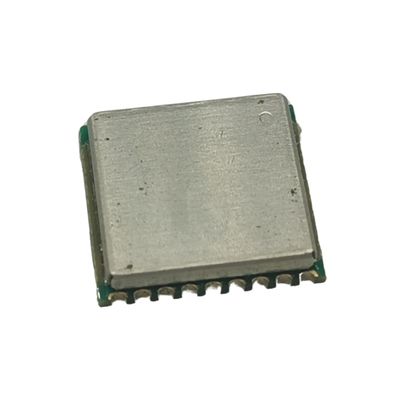

Product Images
