168G3 Mini GPS Receiver with 96H Battery Life GPS BDS GLONASS

Name: 168G3 Mini GPS Receiver with 96H Battery Life GPS BDS GLONASS
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: 168G3
Price: 6.00 USD
Availability: InStock

Marchio:	Youwei
Numero di modello:	168G3
MOQ:	1
prezzo:	$5-7

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Place of Origin:

Guangdong, China

Power Supply:

Baud Rate:

9,600 bps

Channel Count:

Maximum Velocity:

515 m/s

Positioning Accuracy:

<2.5m average

Cold Start Time:

29 seconds

Warm Start Time:

28 seconds

Hot Start Time:

1 second

Tracking Sensitivity:

-161dBm

Reacquisition Sensitivity:

-160dBm

Cold Start Sensitivity:

-147dBm

Maximum Altitude:

50,000 meter

Timepulse Signal:

RMS 30 ns

Navigation Update Rate:

1 Hz

Frequency Band:

Evidenziare:

Mini GPS receiver with 96H battery

GPS BDS GLONASS module

168G3 GPS receiver with warranty

Descrizione del prodotto

168G3 L1 GPS + BDS + GLONASS Positioning & Tracking GPS Mouse Receiver

Professional GPS mouse receiver supporting real-time tracking with NMEA 0183 protocol and triple-mode positioning (GPS + BeiDou + GLONASS).

Key Features

5V DC power operation
Real-time positioning with playback capability
Ultra-compact form factor for easy integration
Plug-and-play installation (auto-power on)
Built-in backup coin cell battery for data retention
Triple-mode positioning: GPS + BeiDou + GLONASS

Technical Specifications

Item	Specification
Chip	MediaTek GK9051 (Rom Version)
Frequency	L1 frequency band
Code	C/A Code
Protocol	NMEA 0183 v4.1 GALILEO L1 open service (with upgrade) Default: GGA,GSA,GSV,RMC Support: VTG,GLL,TXT ublox binary and NMEA Command
Available Baud Rate	9,600 bps
Channels	66
Sensitivity	Tracking: -161dBm Reacquisition: -160dBm Cold Start: -147dBm
Start Times	Cold Start: 29 seconds average Warm Start: 28 seconds average Hot Start: 1 second average
Accuracy	Horizontal Position: Autonomous <2.5m average, SBAS < 2.0m average Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
Maximum Altitude	50,000 meter
Maximum Velocity	515 m/s (1000 knots)
Dynamics	4G
Max navigation update rate	1 Hz (Default 1Hz)

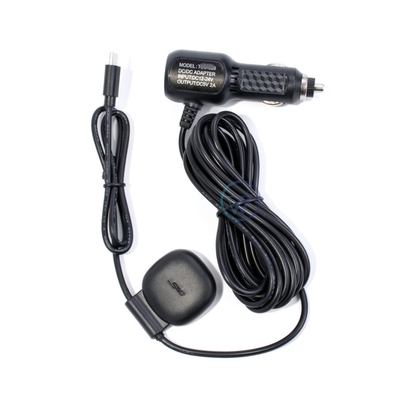

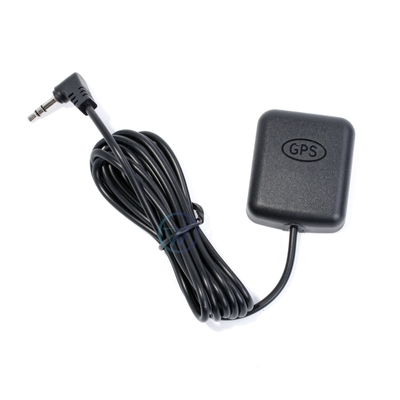

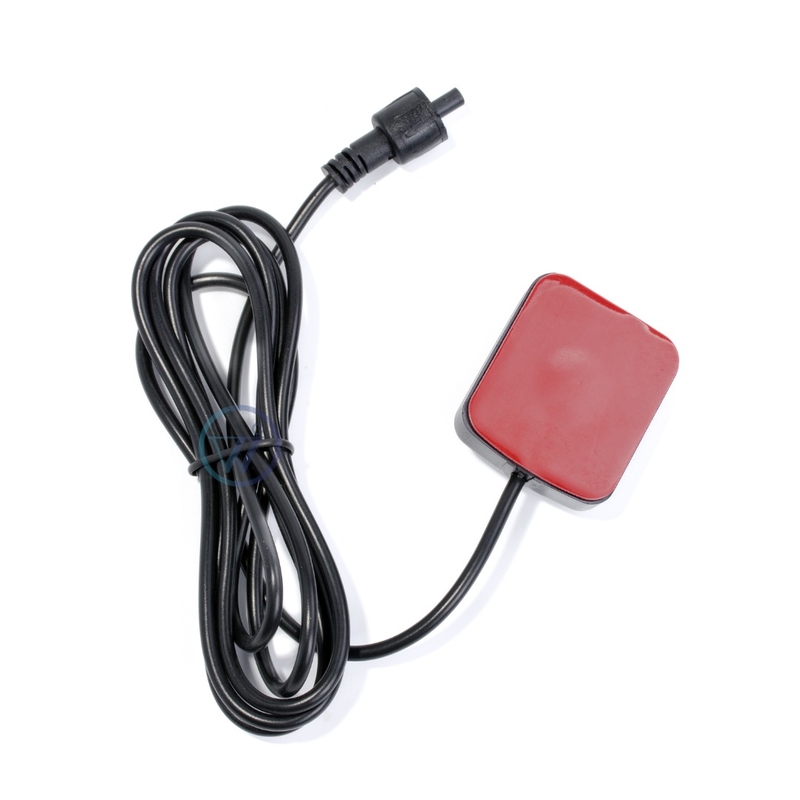

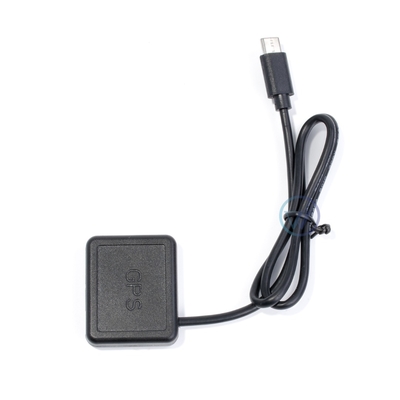

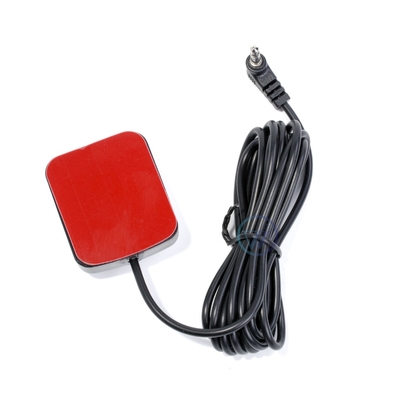

Product Images
